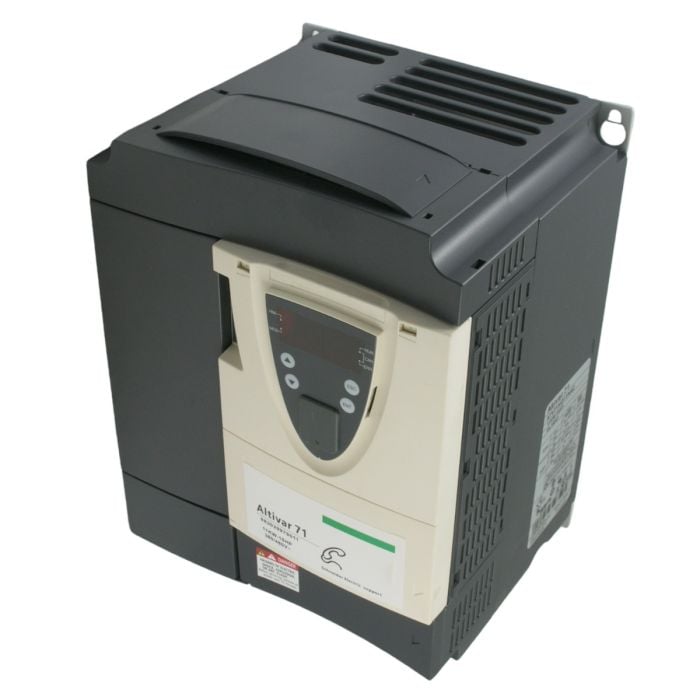

Part Numbers: ATV71HD11N4Z

Package Includes:

1x Frequency Converter

Specification:

Range of Product: Altivar 71

Product Type: Variable Speed Drive

Product Specific Application: Complex High-Power Machines

Component Name: ATV71

Motor Power: 11 kW 3-Phase 380-480 V

Maximum Horsepower: 15 hp 3-Phase 380-480 V

Maximum Motor Cable Length: 50 m shielded 100 m unshielded

Power Supply Voltage: 380-480 V

Power Supply Voltage Limits: 323-528 V

Phase: 3-Phase

Power Supply Frequency: 50-60 Hz

Power Supply Frequency Limits: 47.5-63 Hz

Line Current: 30 A at 480 V 36.6 A at 380 V

EMC Filter: Integrated

Assembly Style: With Heat Sink

Variant: Without Remote Graphic Terminal

Apparent Power: 24.1 kVA at 380 V

Prospective Line Short-Circuit Current: 22 kA

Nominal Output Current: 21 A at 460 V 27.7 A at 380 V

Maximum Transient Current: 41.6 A for 60 s 45.7 A for 2 s

Output Frequency: 0.1-599 Hz

Nominal Switching Frequency: 4 kHz

Switching Frequency: 1-16 kHz adjustable 4-16 kHz with derating

Motor Types: Asynchronous Synchronous

Asynchronous Motor Control: Energy Adaptation Sensorless Flux Vector Control Voltage/Frequency Ratio Flux Vector Control with Sensor

Synchronous Motor Control: Vector Control Without Speed Feedback

Speed Range: 1:100 open-loop asynchronous 1:1000 closed-loop asynchronous 1:50 open-loop synchronous

Speed Accuracy: ±0.01% with encoder feedback ±10% without speed feedback

Torque Accuracy: ±15% open-loop ±5% closed-loop with encoder feedback

Transient Overload Torque: 170% for 60 s 220% for 2 s

Braking Torque: Up to 150% with braking resistor 30% without braking resistor

Regulation Loop: Adjustable PI Regulator

Motor Slip Compensation: Adjustable Automatic Suppressible

Diagnostic Indicator: 1 Red LED for Drive Voltage

Output Voltage: ≤ Power Supply Voltage

Insulation: Electrical Isolation Between Power and Control

Electrical Connection: 2.5 mm² (14 AWG) control terminals 16 mm² (4 AWG) power terminals

Tightening Torque: 0.6 N·m control terminals 3 N·m power terminals

Internal Supply: 10.5 V DC reference potentiometer supply 24 V DC internal supply

Analog Inputs: 2

Analog Input Type: ±10 V DC differential voltage 0-20 mA current 0-10 V DC voltage

Analog Input Sampling Time: 2 ms ±0.5 ms

Response Time: ≤100 ms in Safe Torque Off 2 ms analog output 7 ms relay outputs

Analog Output: 1

Analog Output Type: 0-20 mA current 0-10 V DC voltage 10 V logic output

Discrete Outputs: 2 configurable relay outputs

Minimum Switching Current: 3 mA at 24 V DC

Maximum Switching Current: 2 A inductive 5 A resistive at 250 V AC or 30 V DC

Discrete Inputs: 7

Discrete Input Type: Programmable 24 V DC logic inputs PTC probe input safety input

Acceleration and Deceleration Ramps: Adjustable from 0.01 to 9000 s linear S-curve U-curve or customized

Braking to Standstill: DC Injection

Protection: Overspeed Input Phase Loss Control Circuit Fault Overvoltage Undervoltage Output Overcurrent Overheating DC Bus Overvoltage Motor Phase Loss Short Circuit Thermal Overload

Insulation Resistance: >1 MΩ at 500 V DC for 1 minute

Frequency Resolution: 0.024/50 Hz via analog input 0.1 Hz via display

Communication Protocols: CANopen Modbus

Communication Interfaces: RS-485 RJ45 SUB-D 9

Transmission Frame: RTU Modbus

Transmission Rate: 4.8 9.6 19.2 38.4 kbps Modbus; 20 kbps to 1 Mbps CANopen

Data Format: 8 bits 1 stop bit configurable parity

Address Range: 1-127 CANopen 1-247 Modbus

Access Method: CANopen Slave

Marking: CE

Mounting Position: Vertical ±10°

Height: 295 mm

Depth: 213 mm

Width: 210 mm

Net Weight: 8 kg

Option Cards: CC-Link DeviceNet EtherNet/IP Fipio Interbus-S Modbus Plus Modbus TCP Modbus/Uni-Telway Profibus DP Profibus DP V1 Encoder Interface I/O Extension Programmable Controller Overhead Crane Card

Noise Level: 57.4 dB

Dielectric Strength: 3535 V DC between earth and power terminals 5092 V DC between control and power terminals

Electromagnetic Compatibility: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11

Standards: IEC 61800-3 IEC 61800-5-1 IEC 60721-3-3 EN 55011 UL Type 1

Product Certifications: UL C-tick GOST CSA NOM 117

Pollution Degree: 2

IP Protection Rating: IP20 IP21 IP41 IP54 depending on location and configuration

Vibration Resistance: 1 gn at 13-200 Hz 1.5 mm peak-to-peak at 3-13 Hz

Shock Resistance: 15 gn for 11 ms

Relative Humidity: 5-95% non-condensing

Operating Temperature: -10 to 50 °C without derating

Storage Temperature: -25 to 70 °C

Operating Altitude: Up to 1000 m without derating 1000-3000 m with 1% current derating per 100 m

Applications:

For Schneider Electric

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
