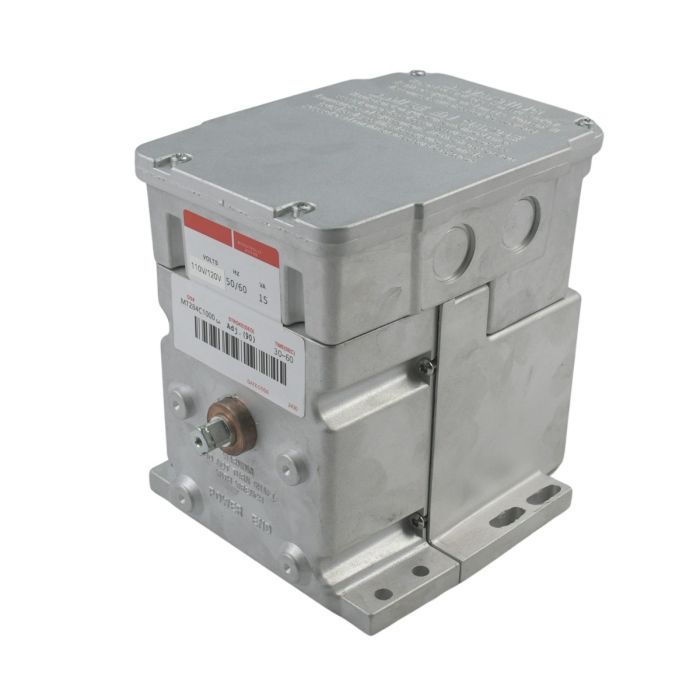

120V Actuator Motor M7284C1000 For Honeywell
120V Actuator Motor M7284C1000 For Honeywell
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Honeywell Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.
In stock
California Proposition 65 Warning
Estimate Shipping Methods
,
Part Numbers: M7284C1000
Package Includes:
1x Actuator Motor
Specifications:
Application Type: Electric
Torque Rating: 150 lb-in
Rated Torque: 150 in-lb
Voltage: 120 VAC
Frequency: 50/60 Hz
Power Consumption: 15 VA
Control Signal: Modulating 4–20 mA
Fail-Safe Mode: Non-Spring Return (NSR)
Operating Temperature: -40°F to 150°F (-40°C to +66°C)
Shaft Connection: 0.375 in. (10 mm) Square Shaft
Shaft Type: Dual-Ended Shaft
Rotation Direction: Clockwise (Electrically Normally Closed)
Stroke: Adjustable 90° to 160° (Factory Set: 90°)
Timing: 30–60 Seconds (Nominal)
Mounting: Foot-Mounted
Enclosure Rating: NEMA 3
External Auxiliary Switches: Yes
Internal Auxiliary Switches: 2 Adjustable (Zero and Span)
Dimensions: 6-7/16 in. H × 5-1/2 in. W × 8-3/4 in. D
Deadweight Load (Per Shaft): 200 lb
Deadweight Load (Combined): 300 lb
Auxiliary Switch Rating (AFL): 7.2 A @ 120 VAC 3.6 A @ 240 VAC
Auxiliary Switch Rating (ALR): 43.2 A @ 120 VAC 21.6 A @ 240 VAC
Applications:
For Honeywell Modutrol IV
