Part Number: 132682
Interchange Part Number: Rp-785615 168956 295380 M-8910
Application:
Compatible with Tuson Actuators
For 2 x 2 or 2.5 x 2.5 Lippert electric through frame slide system (40" or 24" slide-out rooms)
Specification:

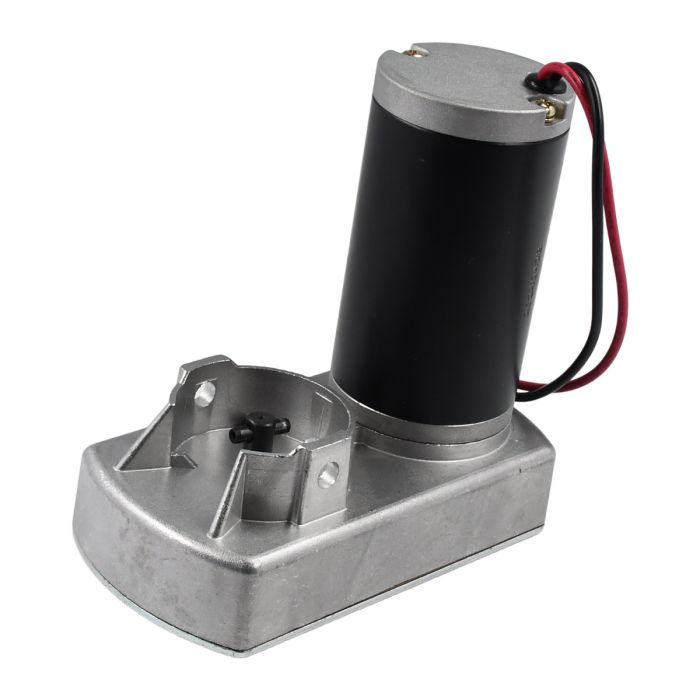

Type: Slide-Out Motor
Voltage: 12V Dc
Speed: 5800 Rpm
Current: 30 Amp
Gear Ratio: 18:1 (Gear) Ratio
Dimensions (Base): 6 1/4" L X 3 1/2" W
Dimensions (Height): 6 1/2" H
20% Duty Cycle Typical (1on/4 Off)
Vertical Post: 5/16" Diameter
Actuator Bar (Extended Length: Bottom Of Base To The Tip Of The Threaded Bar): 92"
Actuator Bar (Compressed Length: Bottom Of Base To The Tip Of The Threaded Bar): 56 1/8"
Extension Housing: 36"
Main Cylinder Housing: 46 5/8"
Package Included: RV Actuator Slide Out Motor x 1
