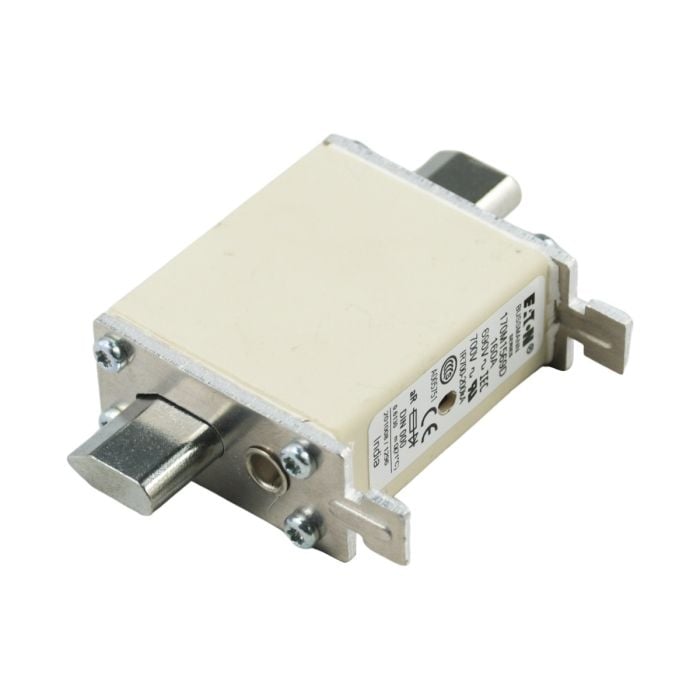

Part Numbers: 170M1569D

Package Includes:

1x Fuse

Specification:

Product Length/Depth: 79 mm

Product Height: 51 mm

Product Width: 21 mm

Product Weight: 136.2 g

Compliances: CE Marked RoHS Compliant

Certifications: UL Recognized IEC Rated

Model Code: FUSE 160A 690V aR DIN 000 HSDNH

Amperage Rating: 160 A

Breaking Capacity: 200 kA

Fuse Indicator: Combination fuse status indicator

Insulated Metal Gripping Lugs (IMGL): No

Utilization Category: aR (accompanied semiconductor protection)

Voltage Type: AC

Fuse Size: 000

Rated Voltage AC: 690 V

Current Type: AC

Class: Class aR

Clearing (I²T): 16500 at 660 V

Watt Losses: 25 W

Fuse Shape: Square body knife blade contacts

Pre-Arc (I²T): 2300

Color: None

Interrupt Rating: 200 kAIC

Fitted With: Dual indicator

Connection: DIN 43-620 blade end x DIN 43-620 blade end

Construction Size: 000

Packaging Type: Standard

Voltage Rating: 690 V (IEC) 700 V (UL)

Type: Fuse

Fuse Type: DIN 43620 Bladed

Fuse System (According to IEC 60269): Other

Applications:

For Semiconductor

For DC Common Bus

For Power Converters/Rectifiers
