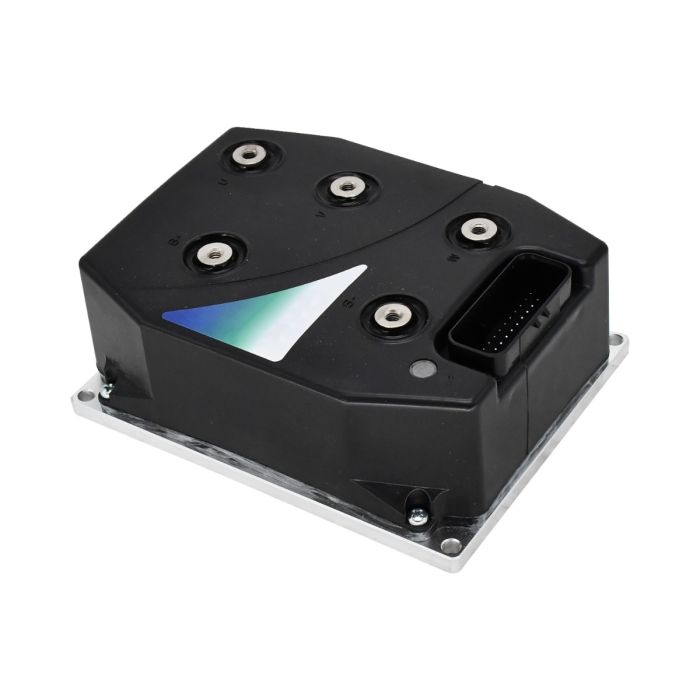

Part Number: 1232E-2321
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
PWM operating frequency: 10 kHz
Maximum encoder frequency: 15 kHz
Maximum controller output frequency: 300 Hz
Heatsink over-temperature cut-off: linear cutback starts at 185° F; complete cutoff at 203° F
Heatsink under-temperature cutoff: complete cutoff at -40° F
Model: 1232E-2321
Nominal Input Voltage: 24V
2 Minute RMS Current Rating (amps): 250
S2-60 Minute RMS Current Rating (amps): 125
MOSFET over-temperature cutback: linear cutback starts at 212° F; complete cutoff at 230° F
MOSFET under-temperature cutback: approx. 50% motor current at -13° F; complete cutoff at -40° F
All low power connections are made through a single 35-pin AMPSEAL connector
Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
Operating Ambient Temperature Range: -40° F to 122° F
Internal Heatsink Operating Temperature Range: -40°F to 203° F
Storage Ambient Temperature Range: -40° F to 203° F
Package Included: Controller x1
Application:
for Curtis Programmable AC Motor Controller
It Is a Replacement Part Not Original Part But It Can Work Good For You
It is necessary that the Curtis AC Controller is programmed before applying to a specific application. For a customer without AC Motor Controller Programming knowledge or experience, please consult your motor dealer and carefully read the Curtis 1232E AC Motor Controller Data-sheet before making your purchase.
Customers may contact us and send us the vehicle or forklift information (manufacturer, model and year of production), to see see if we can provide the controller with its OEM program.
