Part Numbers:

Compatible with EZGO 3016 11761-G1 27855-G01 27855G01 27805-G02 27805G02 27855-G02 31680-G1 31680G1 70-120224 11761GA

Compatible with Prestolite 15-242 15-243 15-334

Compatible with Karrior 704-00

Compatible with Legend 645933

Compatible with Melex 300668

Compatible with Otis A-11004

Compatible with Pargo 3016 8427

Compatible with Cole Hersee 24080

Compatible with Columbia Par Car 71468-85

Compatible with Shuttlecraft 95-0079

Applications:

Compatible with EZGO Electric Golf Karts TXT 70 Series Compatible with Marathon Compatible with Medalist

Package Includes:

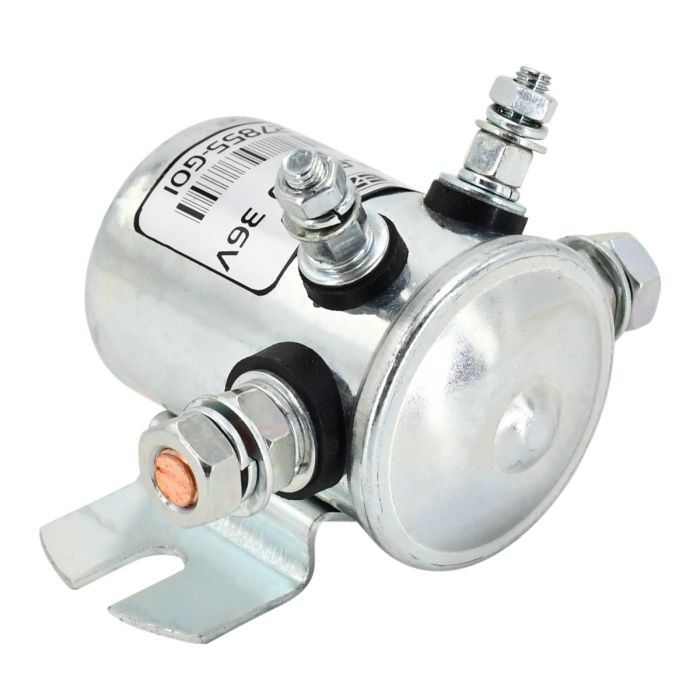

1* Solenoid

Specs:

Voltage: 36V

Terminal: 4

Resistance is 18Ω

Max Transient Current can be 200A, but Continuous Working Current recommends 80Amps

Dimensions: 2) 5/16-24

Contact Terms: 2) 10-32

Mounting holes: 5/16 x 19/32, 2-13/64 on Centers

Function:

Acts as the conduit between the golf car battery and starter motor provides the electrical energy necessary to activate the vehicle's ignition system
