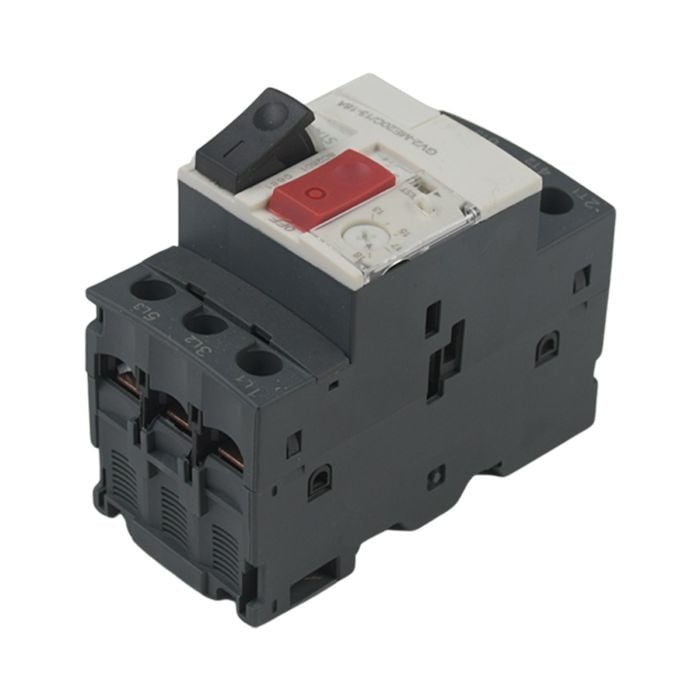

Part Numbers: GV2ME20

Package Includes:

1x Motor Circuit Breaker

Specification:
Trip Unit Technology: Thermal-Magnetic

Poles: 3P

Network Type: AC

Network Frequency: 50/60 Hz

Motor Power Rating:

7.5 kW @ 400/415 V AC

9 kW @ 500 V AC

15 kW @ 690 V AC

Service Breaking Capacity (Ics):

100% @ 230/240 V AC

50% @ 400/415 V AC

50% @ 440 V AC

75% @ 500 V AC

75% @ 690 V AC

Rated Current (In): 18 A

Thermal Adjustment Range: 13 – 18 A

Magnetic Tripping Current: 341 A

Thermal Current (Ith): 18 A

Phase Failure Sensitivity: Yes

Rated Operational Voltage (Ue): 690 V AC

Rated Insulation Voltage (Ui): 690 V AC

Impulse Withstand Voltage (Uimp): 6 kV

Control Type: Push-button

Utilisation Category:

IEC 60947-2 Category A

IEC 60947-4-1 AC-3 / AC-3e

Suitability for Isolation: Yes

Duty: Continuous

Power Dissipation per Pole: 2.5 W

Mechanical Durability: 100 000 cycles

Electrical Durability:

100 000 cycles AC-3 @ 415 V

100 000 cycles AC-3e @ 415 V

Mounting:

35 mm DIN rail (clip-on)

Panel mount (with adaptor plate)

Mounting Position: Horizontal / Vertical

Tightening Torque: 1.7 N·m

Width: 45 mm (1.8 in)

Height: 89 mm (3.5 in)

Depth: 78.5 mm (3.09 in)

IP Rating: IP20

IK Rating: IK04

Fire Resistance: 960°C

Climatic Withstand: IACS E10

Operating Temperature: -20°C to 60°C

Storage Temperature: -40°C to 80°C

Operating Altitude: up to 2000 m

Shock Resistance: 30 Gn (11 ms)

Vibration Resistance: 5 Gn (5–150 Hz)

Applications:

For Schneider Electric

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
