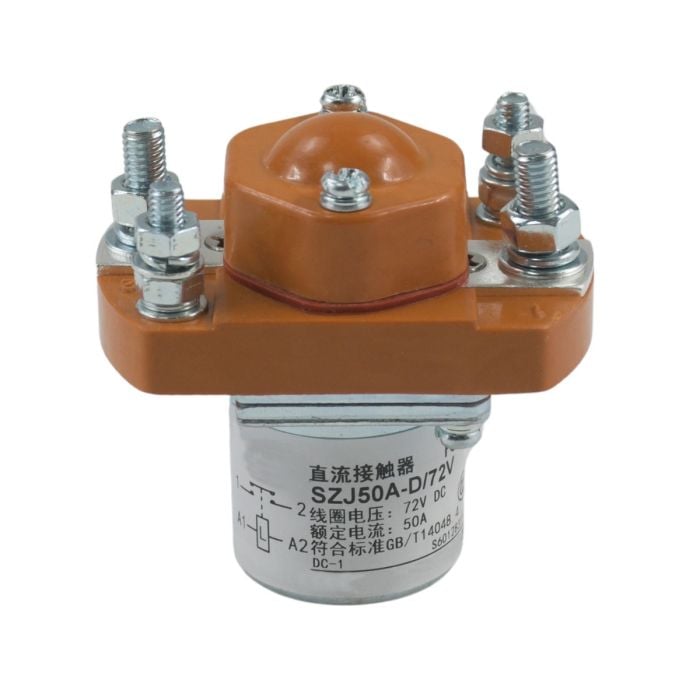

50A 72V DC Contactor Solenoid MZJ-50A
50A 72V DC Contactor Solenoid MZJ-50A
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.
In stock
California Proposition 65 Warning
Estimate Shipping Methods
,
Part Numbers: MZJ-50A
Package Includes:
1x Contactor Solenoid
Specification:
Contact Form: 1 NO (Normally Open)
Coil Rated Voltage (DC): 6V 12V 24V 36V 48V 60V 72V 84V 120V 150V (optional)
Working Voltage Range (40°C coil): 0.8–1.2 Us
Coil Power Consumption: 4–9 W
Contact Rated Voltage (DC): ≤ 60 V
Rated Load Current (48 V DC circuit): 50 A
Maximum Continuous Contact Current: ≤ 80 A
Pull-in Time (NO contacts close): ≤ 5 ms
Drop-out Time (NO contacts open): ≤ 15 ms
Contact Bounce Time (Closing): ≤ 10 ms
Contact Bounce Time (Opening): ≤ 3 ms
Electrical Life: ≥ 20 000 operations
Mechanical Life: ≥ 300 000 operations
Typical Fault Current Breaking Capability: 600 A / 5 ms at 48 V DC
Insulation Resistance: ≥ 20 MΩ
Dielectric Strength: 1000 VAC (50/60 Hz) for 1 minute
Coil Temperature Rise: ≤ 60 K
Terminal Temperature Rise: ≤ 65 K
Cooling Pull-in Voltage (20 ± 5°C): ≤ 70% Us
Cooling Drop-out Voltage (20 ± 5°C): ≥ 5% ≤ 35%
Contact Material: Silver alloy (Ag alloy)
Load Terminal Type: M5 screw
Coil Terminal Type: M4 screw
Operation Mode: Continuous duty
Applications:
For Electric Vehicle
Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
