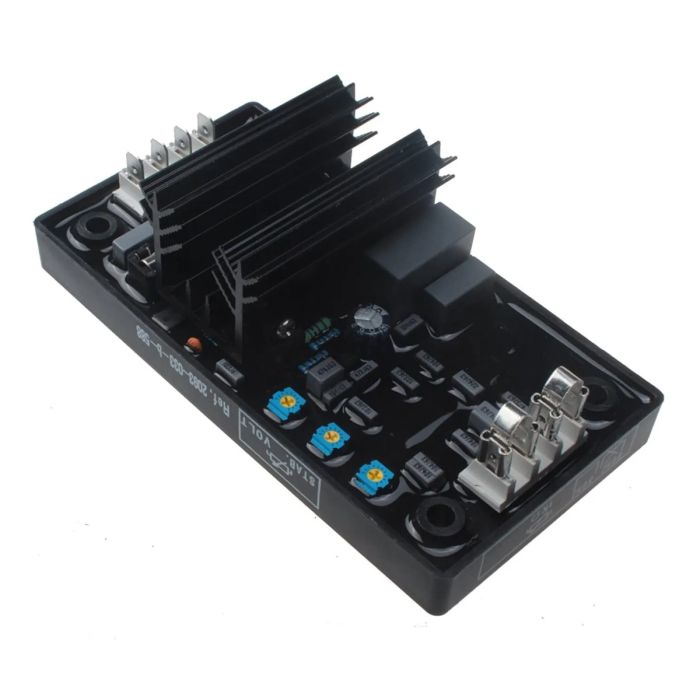

Automatic Voltage Regulator 10000-12943 For FG Wilson
Automatic Voltage Regulator 10000-12943 For FG Wilson
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For FG Wilson Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.
In stock
California Proposition 65 Warning
Estimate Shipping Methods
,
Part Number: 10000-12943 922-197 AEM110RE019 330410933 330410345
Package Included: 1x Automatic Voltage Regulator
Specification:
Input Voltage 120V AC(90~140VAC)
1 Phase 2 Wire 45~65 Hz
Output Voltage Max.100V DC 120V AC Input
Current Continuous 8A
Intermittent 10A for 10 Sec.
Voltage Build-Up Residual Volts at Avr Terminal>5 Vac
Volate Regulation <+/-1%(within 4% Engine Governing)
Thermal Drift 0.03% Per Centidegree Change In Avr Ambient
External Volts Adjustment +/-5% with 5K o, 1/2 Watt Trimmer
Under Frequency Protection Knee Point 47/57 Hz(Adjustable)
Unit Power Dissipation Max.6 Watt
EMI Suppression Internal Electromagnetic Interference Filtering
Vibration 1.5G 5~30Hz 5.0G 30~500Hz
Relative Humidity<95%
Operating Temp: -40~60 centidegree
Storage Temp: -40~85 centidegree
Application:
For Leroy Somer
SHUNT Excitation System Alternators
LSA 42.2 43.2 44.2 46.2 47.2
For FG Wilson
Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need
Premium Quality - Reliable in Operation, Long Working Life - Aftermarket Parts
