Controller HGM6310D for Smartgen

Controller HGM6310D for Smartgen

Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Smartgen Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov

In stock

SKU 1947915
Loading...

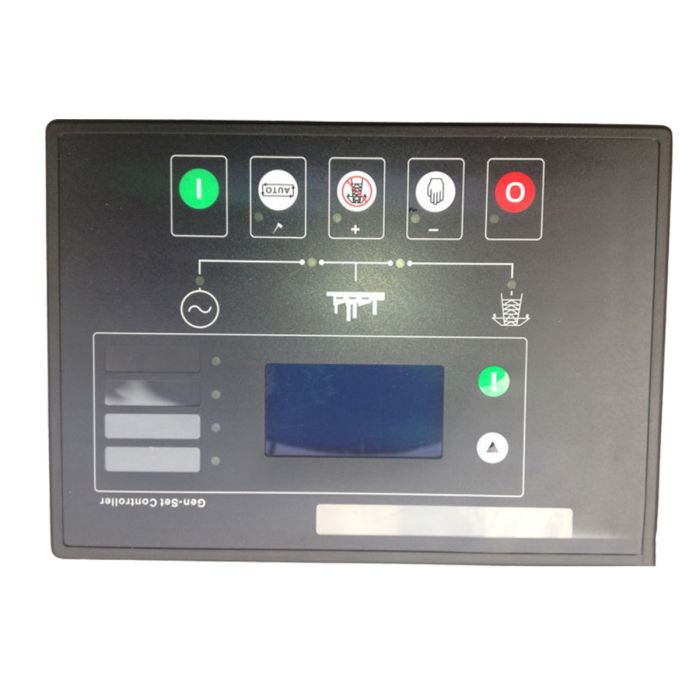

Smartgen Controller HGM6310D for Generator Genset

HGM6310D is an automatic genset controller, which assembles digitization, intelligentization and networked techniques. It is used in automatic and monitor control system of unit set diesel genset to achieve automatic start/stop, data measure, alarm protection and „three remote‟ functions (remote control, remote monitoring, remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese and English interface with easy and reliable operation.
HGM6310D genset automatic controllers adopt microprocessor technique with precision measurement of multi-parameters, fixed value adjustment, time setting and threshold adjusting and etc.. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.

Specification:
Operating voltage:DC8. 0V to 35. 0V, Continuous Power Supply
Power consumption:<3W(Standby mode: ≤2W)
Alternator Input Range:
3-Phase 4 Wire:20V AC - 360 VAC (ph-N)
3-Phase 3 Wire:30V AC - 600 VAC (ph- ph)
Single-Phase 2 Wire:20V AC - 360 VAC (ph-N)
2-Phase 3 Wire:20V AC - 360 VAC (ph-N)
Alternator Input Frequency:50Hz - 60Hz
Magnetic Volt Input Range:1.0V to 24.0V (RMS)
Magnetic Input Frequency:10,000 Hz (max)
Start Relay Output:16 Amp DC28V at DC supply output.
Fuel Relay Output:16 Amp DC28V at DC supply output.
Auxiliary Relay Output (1-4):
(1-3)16Amp DC28V at DC supply output,
(4)16Amp 250VAC passive output.
Close Generator Relay Programmable Relay Output 5:
16Amp 250VAC passive
Close Mains Relay Programmable Relay Output 6:
16Amp 250VAC passive
Overall Dimensions:240mm x 172mm x 57mm
Panel Cutout:214mm x 160mm
C. T. Secondary:5A (rated)
Operating Temp. Range:
Temperature: (-25~70)°C
Humidity: (20~90)%
Storage Condition:Temperature: (-40~+70)°C
Protective Level:
IP55: when with waterproof rubber ring added
between controller and its panel.
IP42: when without waterproof rubber ring between
controller and its panel.
Insulation Intensity:
Object: between input/output/power
Quote standard: IEC688-1992
Test way: AC1.5 kV/1min 3mA leakage current
