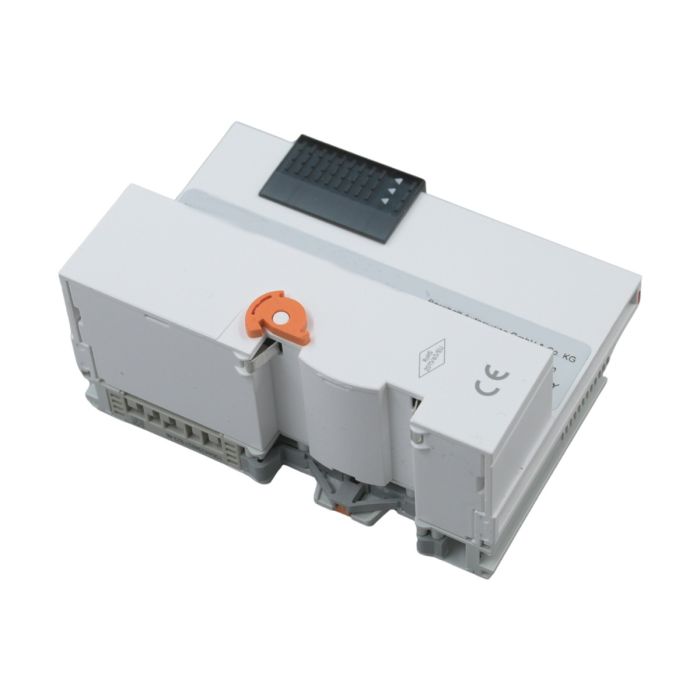

Part Numbers: CX7000

Package Includes:

1x Controller Module

Specifications:

Processor: Arm® Cortex®-M7 480 MHz

CPU Cores: 1

Flash Memory: microSD card slot 512 MB included (expandable)

Main Memory: 32 MB SDR (non-expandable)

NOVRAM: 4 kB

Operating System: TwinCAT/RTOS

Control Software: TwinCAT 3 Runtime (XAR)

Input / Output:

Digital Inputs: 8 Multi-Functional Inputs 24 V DC

Digital Outputs: 4 Multi-Functional Outputs 24 V DC 0.5 A 1-wire

Analog Inputs: 2 × 0–10 V 12-bit Resolution (16-bit Presentation)

PWM Outputs: 2 Channels 15 Hz–100 kHz 0–100% Duty Cycle

Counter: 1 × 32-bit Up/Down Counter Up to 100 kHz

Encoder Interface: Incremental Encoder 4-Fold Quadrature 250 000 Increments

Max. Output Current: 0.5 A per Channel (Short-Circuit Protected)

Interfaces:

Ethernet: 1 × RJ45 10/100 Mbps

USB: 1 × USB

I/O Bus: E-Bus or K-Bus (Automatic Detection)

Electrical:

Power Supply: 24 V DC (-15% / +20%)

E-Bus/K-Bus Current Supply: 1.5 A

Controller Power Consumption: < 2.0 W

E-Bus/K-Bus Power Consumption: 7.5 W

UPS OCT Support: No

Diagnostics:

Status LEDs: TC Status Watchdog Error Flash Access

Real-Time Clock: Internal Capacitor-Buffered RTC (>21 Days Backup)

Environmental:

Operating Temperature: -25°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 95% RH Non-Condensing

Protection Rating: IP20

Cooling: Passive

Mechanical:

Dimensions (W × H × D): 49 × 100 × 73 mm

Standards & Certifications:

EMC: EN 61000-6-2 / EN 61000-6-4

Vibration/Shock: EN 60068-2-6 / EN 60068-2-27

Digital Input Standard: EN 61131-2 Type 3

Approvals: CE UL

TwinCAT 3 Functions Included:

TC1000 ADS

TC1100 I/O

TC1200 PLC

TF4100 Controller Toolbox

TF4110 Temperature Controller

TF6255 Modbus RTU

TF6340 Serial Communication

TF6701 IoT Communication (MQTT)

TF6730 IoT Communicator

TF6760 IoT HTTPS/REST

Platform Level:

TwinCAT 3 Platform: Basic (Level 10)

Digital Input Specifications:

Connection: 1-Wire

Rated Voltage: 24 V DC

Logic 0: -3 to +5 V

Logic 1: 11 to 30 V

Input Filter: Configurable (Default 3 ms Minimum 10 µs)

Digital Output Specifications:

Connection: 1-Wire

Rated Voltage: 24 V DC

Load Types: Resistive Inductive Lamp

Switching Time: TON 20 µs TOFF 10 µs

Short-Circuit Current: < 2 A

Switch-Off Energy: < 150 mJ per Channel

Counter Specifications:

Counter Type: 1 × Up/Down 1 × Up or Down

Counter Depth: 32-Bit

Maximum Frequency: 20 kHz (Up/Down) 100 kHz (Up)

Special Functions: Set Counter Value Reload Value Output Switching

Encoder Specifications:

Type: Incremental Encoder

Connection: A/B Single-Ended 24 V

Additional Input: Latch Input 24 V DC

Resolution: 250 000 Increments (4× Evaluation)

Counter Depth: 32-Bit

Special Functions: Latch Software Gate Set Counter Value Reload Value

Analog Input Specifications:

Channels: 2

Input Type: Single-Ended

Input Range: 0–10 V

Input Resistance: 500 kΩ

Filter Frequency: 2 kHz

Resolution: 12-Bit (16-Bit Presentation)

Accuracy: < ±0.3% Full Scale

PWM Specifications:

Channels: 2

Output Voltage: 24 V DC

Maximum Output Current: 0.5 A per Channel

Frequency Range: 15 Hz to 100 kHz

Duty Cycle: 0–100%

Short-Circuit Current: < 2 A

Special Features: Independent Frequency Setting per Channel
