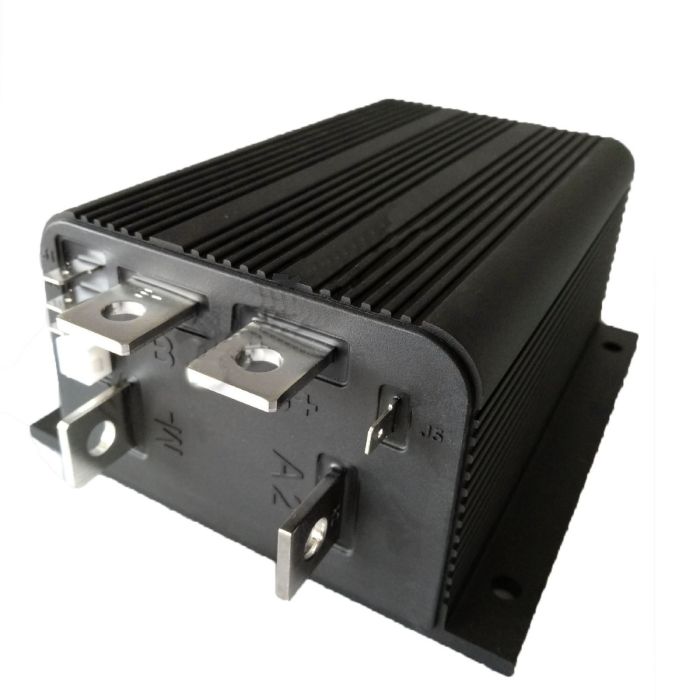

DC Motor Speed Controller 1204M-5203 36/48V 275A for Curtis

DC Motor Speed Controller 1204M-5203 36/48V 275A for Curtis

Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Curtis Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov

In stock

SKU 1230390
Loading...

Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need.

The picture is for reference only, the actual product shall prevail
Part Number: 1204M-5203 1204M-5201
Application:
For Curtis
Specifications:
1204M-5203 is the new upgraded version of 1204M-5201 DC series motor controller,
Norminal Battery Voltage (Volts): 36/48
The voltage can be set to either 36 volts or 48 volts.
By defaut, it is set as 48 volts, with an allowable working range 33-48V.
If it is set as 36 volts, the allowable working range is 25-36V
Note:
The buyer should confirm  the battery system voltage and the throttle type (0-5kÎ, 5k-0Î or 0 – 5V).
By defaut, we will deliver the controller of setting of 48V / 275A / 0-5kÎ (Throttle Type= "0").
Ten throttle types can be used with 1204M-5203:
Type 0: 2-wire potentiometer, 0–5kÎ
Type 1: 2-wire potentiometer, 5kΖ0
Type 2: single-ended 0–5V input
Type 3: 2-wire potentiometer, 4.6kΖ0
Type 4: 2-wire potentiometer, 5.5kΖ0
Type 5: 2-wire potentiometer, 1kΖ0
Type 6: ITS input
Type 7: single-ended 6.3–10.6 V input
Type 8: single-ended 6–12 V input
Type 9: single-ended 3-wire potentiometer, 0–5kÎ
Specifications:
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 V
KSI input current (no contactors engaged): < 60 mA without programmer; <130 mA with programmer
Logic input current: <1 mA
Status LED output current (max.): 2 mA
Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
Package environmental rating: ISTA 2A; electronics sealed to IP65
2 Minute Current Rating (amps): 275
5 Minute Current Rating (amps): 200
1 Hour Current Rating (amps): 125
Package Including: 1 x Motor Speed Controller
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
