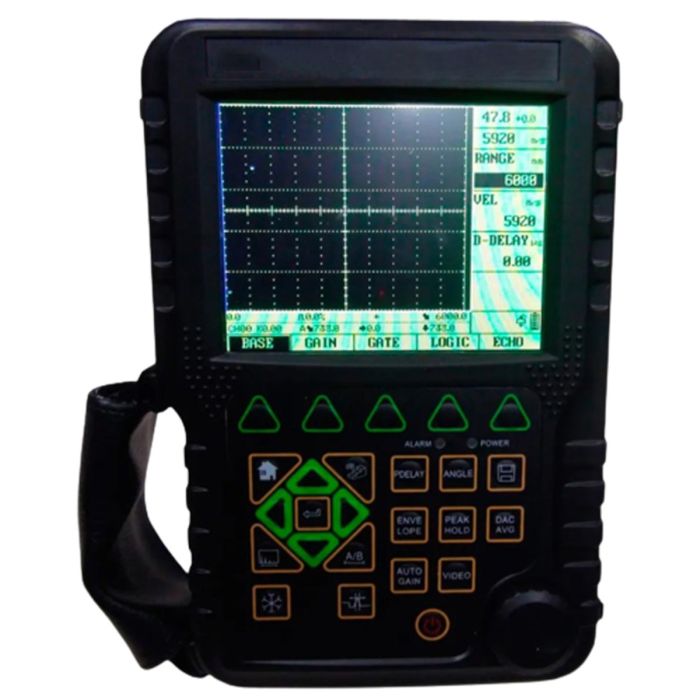

Digital Ultrasonic Flaw Detector Defectoscope DAC AVR 0~6000mm Range 0.5~10 MHz MFD350B For Mitech

Digital Ultrasonic Flaw Detector Defectoscope DAC AVR 0~6000mm Range 0.5~10 MHz MFD350B For Mitech

Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts Mitech Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov

In stock

SKU 1937659
Loading...

Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need

Part Number: MFD350B

Applications:
For Mitech Digital Ultrasonic Flaw Detector

For locating and sizing hidden cracks, voids, disbands and similar discontinuities in welds, forgings, billets, axles, shafts, tanks, pressure vessels, turbines and structural components

Product Information:
Range: 0 to 6000 mm, at steel velocity
Material Velocity: 300 to 15000m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity Leavings: >60dB (flat-bottomed deep hole 200mm2)
Resolution : >40dB (5P14)
Noise Level: ≤ 8%
Test Modes: Pulse echo, dual element and thru-transmission
Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: Low, Medium and High spike pulse.
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.2 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF
System Linear Deviation:Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter
Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Overall Dimensions: 10.35×6.7×2.4 in
Relative Humidity: (20 ~ 95)% RH
Power Supply: DC 9V
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃

Package Included: Digital Ultrasonic Flaw Detector x 1
Details:
Main Body x 1
Straight Beam Probe x 1
Angle Probe x 1
Machine-probe Cable (Q9-Q9) x 1
Battery Module x 1
Power Adapter (Charger) x 1
Support Pillar x 1
English Manual x 1
Instrument Case x 1
Data proceeding Software x 1
USB communication Cable x 1

It Is a Replacement Part, Not Original Part. But It Can Work Good For You
