Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need.

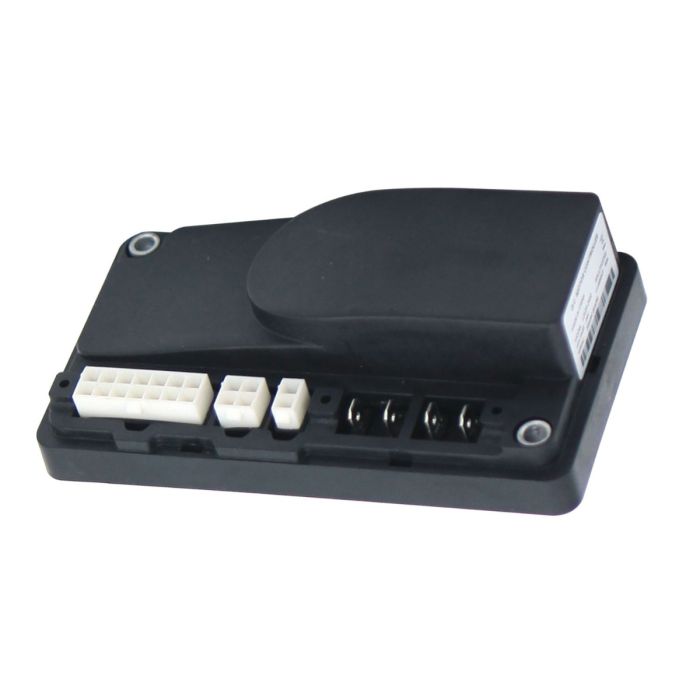

Part Number: 1212P-2502
Application:
For Curtis
Norminal Battery Voltage (Volts): 24V
20 Second Current Rating (amps): 90
2 Minute Current Rating (amps): 50
1 Hour Current Rating (amps): 20
Peak Boost Current (amps): 90
Max Boost Current Duration: 10 Second
Minimum motor resistance: 120 mÎ
B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)
KSI input current (typical): 80 mA
Logic input current (typical): 1 mA
Horn output current (max.): 15 mA
BDI output voltage, resistance (max.): 0–5 V, 10 kÎ
LED output current (max.): 15 mA
Electromagnetic brake coil resistance (min.): 32 Î
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
Heatsink overtemperature: linear cutback starts at 80°C; complete cutoff at 105°C
Heatsink undertemperature: cutback starts at -10°C; and is reduced linearly to 50% at -25°
Undervoltage cutoff: 14 V
Overvoltage cutoff: 34 V
Throttle Type: By default, the Throttle Type of controller 1212P-2501 is set as Type 7 (7 = single-ended; neutral when wiper ≤ PotLow). The 1212P-2501 controller can accept inputs from both 5kÎ, 3-wire pot throttles and voltage throttles.
Package Including: Motor Controller * 1
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
