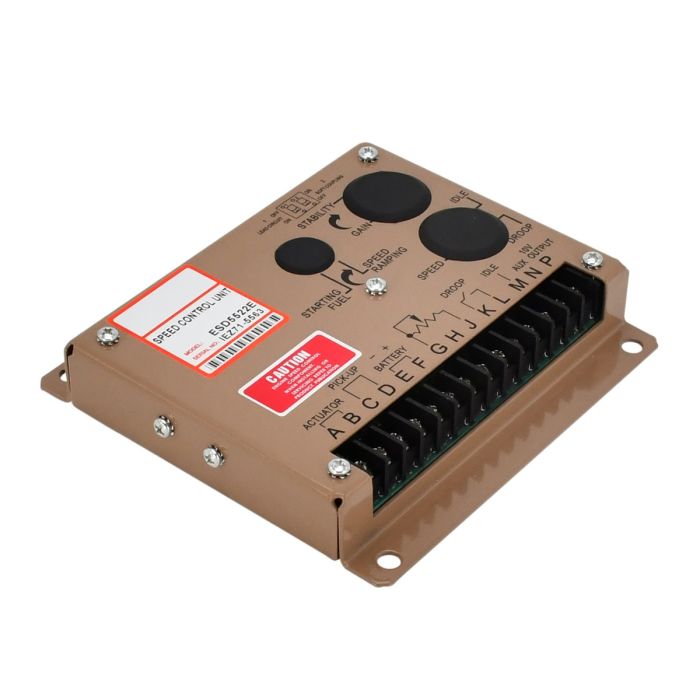

Engine Speed Governor ESD5522E Control Unit Panel for GAC

Engine Speed Governor ESD5522E Control Unit Panel for GAC

Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For ESD5522E Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov

In stock

SKU 1571945
Loading...

Part Number: ESD5522E ESD5522
Isochronous Operation/Steady Stability-----+/-0.25% or better
Supply-----12 or 24 VDC Battery Systems(transient camp; reverse voltage protected)
Power Consumption-----50 ma continuous plus actuator current
Maximum Actuator Current at 25ºC(77ºF)-----10 Amps continuous
Supply 12 or 24 VDC Battery System (Transient and Reverse Voltage)
Polarity Negative Ground (Case Isolated)
Power Consumption 50 ma continuous plus actuator current
Actuator Current Range 25
Deg. C - (Inductive Load) Min.2.5 Amps; Max. 10Amps continuous
PID PID parameter is different with ESD5500
Speed Sensor Signal 0.5-120 Volts RMS
Isochronous Operation/Steady
State Stability ±0.25% or better
Speed Range/Governor 1K to 7.5K Hz continuous
Speed Drift with Temperature ±1 Max
Idle Adjust CW 60% of set speed
Idle Adjust CCW Less than 1200 Hz.
Droop Range 1-5% regulation
Droop Adj. Max. (K-L Jumpered) 400 Hz. ±75Hz. Per 1.0A change
Droop Adj. Min. (K-L Jumpered) 15Hz. ±6Hz. Per 1.0A change
Speed Trim Range ±200 Hz
Remote Variable Speed Range 500 - 7.5 Hz. Or any part there of
Terminal Sensitivity
J 100 Hz. ± 15Hz / Volt 5.0 K Impedance
L 735 Hz. ±60 Hz / Volt 65 K Impedance
N 148 Hz. ±10 Hz / Volt 1 Meg. Impedance
P 10 VDC Supply 20 ma Max
Ambient Operating
Temperature Range -40 to +85 Deg. C
Relative Humidity Up to 95%
All Surface Finishes Fungus Proof and Corrosion Resitant
Vibration 1G at 20 to 100 Hz
Testing 100% Functionally Tested

It Is a Replacement Part Not Original Part But It Can Work Good For You
