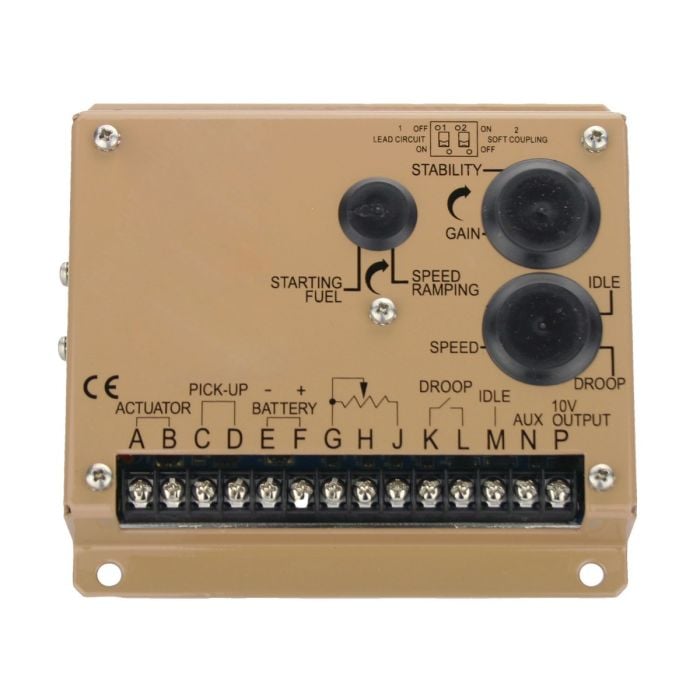

ESD5500E Electronic Engine Speed Control Unit Governor Generator Genset Parts
ESD5500E Electronic Engine Speed Control Unit Governor Generator Genset Parts
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Governor Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.
In stock
California Proposition 65 Warning
Estimate Shipping Methods
,
Part Number: ESD5500E
Item Weight:1.3 pounds
Package Included: Electronic Engine Speed Controller x 1
Technical Specification:
Isochronous Operation/Steady State Stability ± 0.25% or better
Speed Range/Governor 1K-7.5K Hz continuous
Speed Drift with Temperature ± 1% Maximun
IDLE Adjustment 160±20Hz - 60% of set speed
Droop adjustment Min.(K-L Jumpered) 15Hz. ±6Hz. per 1.0 A change
Droop adjustment Max.(K-L Jumpered) 400Hz. ±75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered) 875Hz., ±75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered) 15Hz.,±6Hz. per 1.0 A change
Speed Trim Range±200Hz
Remote Variable Speed Range 500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., ±15Hz/Volt 5.0 K Impedance
L: 735Hz., ± 60Hz/Volt 65 K Impedance
N: 148Hz., ±10Hz/Volt 1Meg. Impedance
P: 10V DC Supply 20ma Max.
Speed Switch Adjustment Range 1000-10000Hz.
Environmental:Ambient Operating Temperature Range -40℃ to +85℃
Relative Humidity up to 95%
Storage Temperature -55℃- 90℃
Shock 20-100HZ 500mm/Sec
Input power:Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity Negative Ground(Case Isolated)
Power Consumption 50mA continuous plus actuator current
Actuator Current Range 25℃-(Inductive Load) Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal 0.5-120 V RMS
Speed Switch Relay Contacts(N.O.and N.C.) 10Amp
In Terms of Any Problem of This Product, Please Contact us. We Will Provide you Excellent Customer Service and 100% Satisfaction Warranty.
