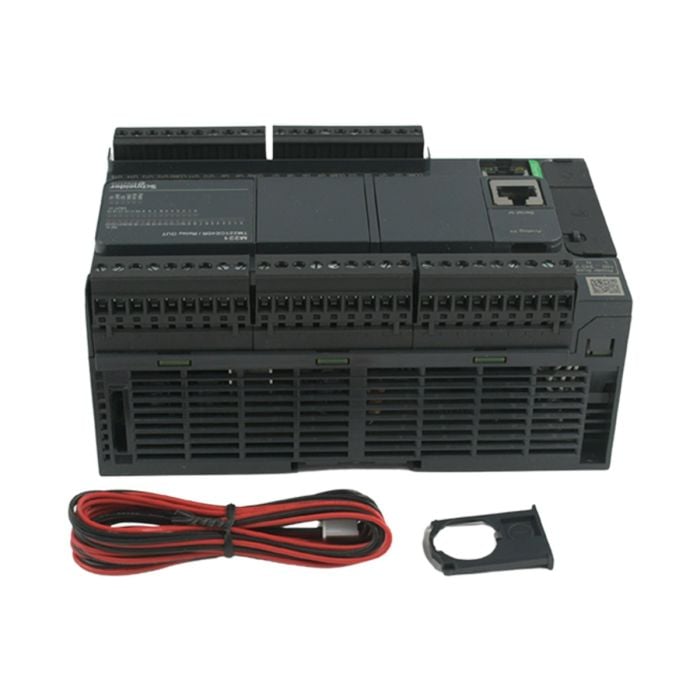

Part Numbers: TM221CE40R

Package Includes:

1x Logic Controller Modicon

Specification:
Rated Supply Voltage: 100-240 V AC

Discrete Input Number: 24 conforming to IEC 61131-2 Type 1

Analogue Input Number: 2 at 0-10 V

Discrete Output Type: Relay Normally Open

Discrete Output Number: 16 Relay

Discrete Output Voltage: 5-125 V DC 5-250 V AC

Discrete Output Current: 2 A

Discrete I/O Number: 40

Maximum Number of I/O Expansion Modules: 7 Local 14 Remote

Supply Voltage Limits: 85-264 V

Network Frequency: 50/60 Hz

Inrush Current: 40 A

Maximum Power Consumption: 70 VA with expansion modules 41 VA without expansion modules

Power Supply Output Current: 0.52 A at 5 V 0.24 A at 24 V

Discrete Input Logic: Sink or Source

Discrete Input Voltage: 24 V DC

Analogue Input Resolution: 10 bits

LSB Value: 10 mV

Conversion Time: 1 ms per channel plus 1 controller cycle

Permitted Input Overload: ±30 V DC for 5 minutes ±13 V DC permanent

Voltage State 1 Guaranteed: ≥15 V

Voltage State 0 Guaranteed: ≤5 V

Discrete Input Current: 7 mA 5 mA for fast input

Input Impedance: 3.4 kΩ discrete 100 kΩ analogue 4.9 kΩ fast input

Response Time: 35 µs turn-off 10 ms output turn-on/off 5 µs fast input

Configurable Filtering Time: 0 ms 3 ms 12 ms

Output Voltage Limits: 125 V DC 277 V AC

Maximum Current per Output Common: 7 A

Absolute Accuracy Error: ±1% of full scale

Electrical Durability: 100 000-300 000 cycles depending on load

Switching Frequency: 20 operations/minute at maximum load

Mechanical Durability: 20 000 000 cycles for relay output

Minimum Load: 1 mA at 5 V DC

Protection Type: Without protection at 5 A

Reset Time: 1 s

Memory Capacity: 256 kB application/data RAM 256 kB internal variables RAM

Data Backup: 256 kB built-in flash memory

Data Storage Equipment: Optional 2 GB SD card

Battery Type: BR2032 or CR2032X lithium non-rechargeable

Backup Time: 1 year at 25 °C

Execution Time for 1K Instructions: 0.3 ms

Execution Time per Instruction: 0.2 µs Boolean

Event Task Execution Time: 60 µs

Maximum Object Areas: 8000 %MW 255 %TM 512 %KW 255 %C 512 %M

Real-Time Clock: Yes

Clock Drift: ≤30 seconds/month at 25 °C

Regulation Loop: Adjustable PID up to 14 simultaneous loops

Counting Inputs: 4 fast inputs 100 kHz 32-bit

Counter Functions: Single-phase A/B pulse/direction

Integrated Connections: Mini-B USB 2.0 RJ45 serial RS232/RS485 Ethernet RJ45

Serial Link Supply: 5 V less than 200 mA

Transmission Rate: 1.2-115.2 kbit/s RS232/RS485 480 Mbit/s USB

Communication Port Protocol: SoMachine-Network Modbus RTU/ASCII Ethernet

Ethernet Port: 10BASE-T/100BASE-TX 1 port 100 m copper cable

Communication Services: DHCP Client Modbus TCP Client/Server Ethernet/IP Adapter Modbus TCP Slave

Local Signalling: PWR RUN ERR SD BAT I/O status SL ACT Link LEDs

Electrical Connection: Removable screw terminals 24 V DC power terminal 4-terminal analogue input connector Mini-B USB

Maximum Cable Distance: Less than 10 m shielded fast input less than 30 m unshielded output/digital input less than 1 m unshielded analogue input

Insulation: 500-2300 V AC depending on circuit

Marking: CE

Sensor Power Supply: 24 V DC at 250 mA

Mounting Support: TH35-15 or TH35-7.5 DIN rail panel mounting

Height: 90 mm

Depth: 70 mm

Width: 160 mm

Net Weight: 0.456 kg

Standards: IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01

Product Certifications: DNV-GL EAC ABS cULus LR RCM CE UKCA cULus HazLoc

Environmental Characteristics: Ordinary and hazardous locations

Electrostatic Discharge Resistance: 8 kV air 4 kV contact

Electromagnetic Field Resistance: 10 V/m at 80 MHz-1 GHz 3 V/m at 1.4-2 GHz 1 V/m at 2-2.7 GHz

Magnetic Field Resistance: 30 A/m at 50/60 Hz

Fast Transient Resistance: 1-2 kV depending on connection

Surge Withstand: 0.5-2 kV depending on connection

Resistance to Conducted Disturbances: 3-10 V depending on frequency and specification

Electromagnetic Emission: Conducted and radiated emissions conforming to IEC 55011

Immunity to Microbreaks: 10 ms

Operating Temperature: -10 to 55 °C horizontal -10 to 35 °C vertical

Storage Temperature: -25 to 70 °C

Relative Humidity: 10-95% non-condensing

IP Degree of Protection: IP20 with protective cover

Pollution Degree: 2

Operating Altitude: 0-2000 m

Storage Altitude: 0-3000 m

Vibration Resistance: 3.5 mm at 5-8.4 Hz 1 gn at 8.4-150 Hz

Shock Resistance: 98 m/s² for 11 ms
