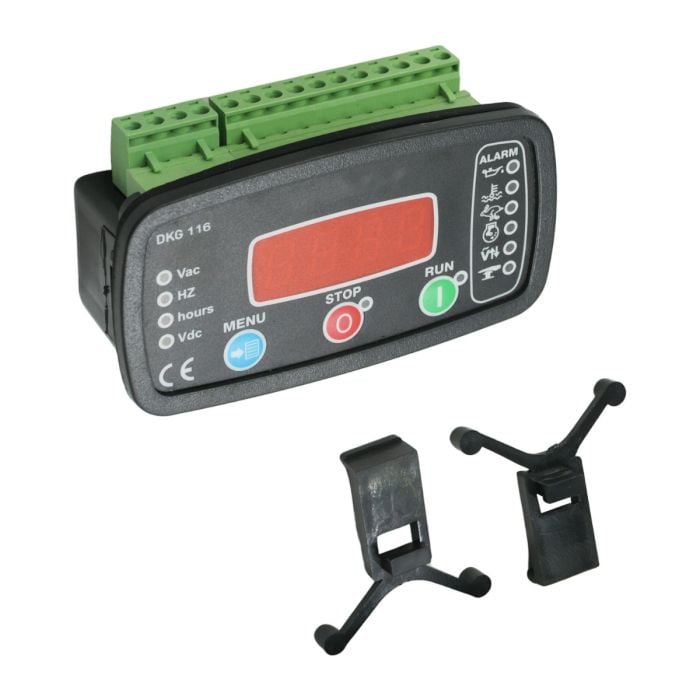

Manual And Remote Start Control Panel DKG-116 For Datakom
Manual And Remote Start Control Panel DKG-116 For Datakom
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Datakom Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Numbers: DKG-116
Package Includes:
1x Manual And Remote Start Control Panel
Specification:
Alternator frequency: 50 or 60 Hz nominal.
Measurement Accuracy: 0.5% + 1 digit
Overspeed: nominal frequency + 14% (+24% overshoot)
Underspeed: 30 Hz
Crank time: 10 sec.
Crank rest: 10 sec.
Crank attempts: 3
Stop timer: 10 sec.
Cooldown timer: 30 sec.
Holdoff timer: 10 sec.
DC Supply Range: 9.0 to 16.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 12 mA-DC (display off)
Maximum Operating Current: 130 mA-DC
Fuel and Crank outputs: 10A @ 12V-DC
Auxiliary Output: 1A @ 12V-DC (negative pulling protected semiconductor output)
Magnetic pickup Input: 1.5 to 30Vpp
Operating temp.: -40ºC (-40ºF) to 80 ºC (176ºF).
Maximum humidity: 95% non-condensing.
Dimensions: 102 x 55 x 40 mm (WxHxD)
Case Material: High Temp. ABS/PC (UL94-V0)
IP Protection: IP65 (front panel) IP30 (rear)
Installation: Flat surface mounting on a Type 1 enclosure.
Conformity (EU directives)
-2006/95/EC (low voltage)
-2004/108/EC (EMC)
Applications:
For Datakom
Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
