Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It’s the Correct Product you Need.

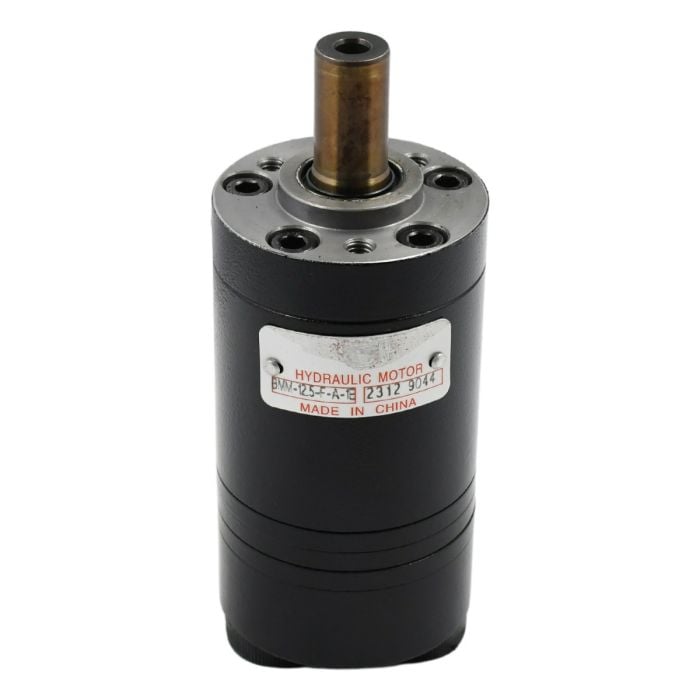

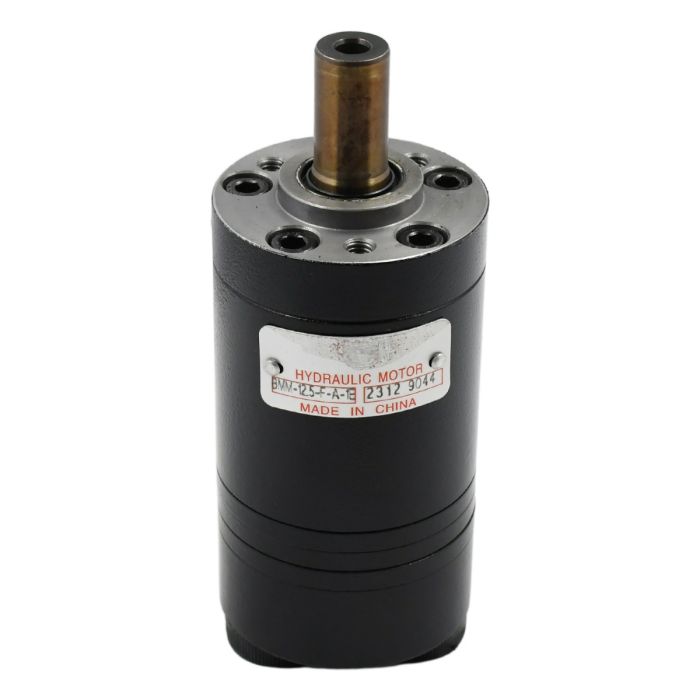

Part Number: OMM12.5-151G0001 151G0001 BMM-12.5-M-A-IE

Package Included:

1x Orbital Motor

Specification:
Motor Size: 12.5
Geometric Displacement: 12.5 cm³/0.77 in
Max Speed Cont: 1550 RPM
Max Speed Int: 1940 RPM
Max Torque Cont: 16 Nm/140 Lbf in
Max Torque Int: 23 Nm/200 Lbf in
Max Output Power Cont: 2.4 KW/3.2 HP
Max Output Power: 3.2 KW/4.3 HP
Max Inlet Pressure Cont: 140 Bar/2030 PSI
Max Inlet Pressure Int: 175 Bar/2540 PSI
Max Inlet Pressure Peak: 225 Bar/3260 PSI
Max Pressure Drop Cont: 100 Bar/1450 PSI
Max Pressure Drop Int: 140 Bar/2030 PSI
Max Pressure Drop Peak: 200 Bar/2900 PSI
Max Oil Flow Cont: 20 L/min/5.3 GPM
Max Oil Flow Int: 25 L/min/6.6 GPM
Max Starting Pressure: 4 Bar/60 PSI (with unloaded shaft)
Min Starting Torque: 12 Nm/105 Lbf in (at max press drop cont)
Min Starting Torque: 17 Nm/150 Lbf in (at max press drop int)
Max Return Pressure: 140 Bar/2030 PSI (with drain line cont)
Max Return Pressure: 175 Bar/2540 PSI (with drain line int)
Max Return Pressure: 225 Bar/3260 PSI (with drain line peak)
