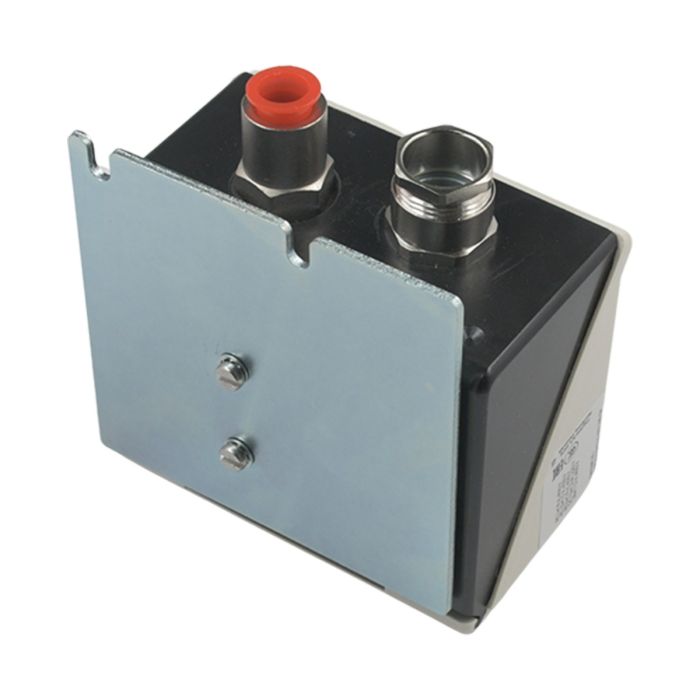

Part Numbers: 060-539191

Package Includes:

1x Pressure Switch

Specification:
Ambient Temperature Range: -40 °C to 65 °C (-40 °F to 149 °F)

Ambient Temperature Note: 80 °C / 176 °F for maximum 120 minutes

Approval Standards: CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS China

CE Evaluated: Yes

China RoHS Compliance: Yes

EU RoHS Compliance: Yes

EU RoHS Exemption Clause: No

Contact Function: SPDT

Contact Rating:

AC15: 10 A, 400 V

AC1: 16 A, 400 V

AC3: 16 A, 400 V

DC13: 12 W, 220 V

LR: 112 A, 400 V

Differential Range: 0.5 to 2 bar (7 to 29 psi)

Electrical Connection: Screwed cable entry

Electrical Connection Size: Pg 13.5

Electrical Connection Standard: DIN 40430

Electrical Connection Type: Female

Electrical Connection Comment: Metal cable gland

EN 60947 Electrical Properties:

Insulation Voltage: 400 V

Pollution Degree: 3

Rated Impulse Voltage: 4 kV

Short Circuit Protection Fuse: 16 A

EN 60947 Wiring Properties:

Flexible with Ferrules: 0.5–1.5 mm²

Flexible without Ferrules: 0.7–2.5 mm²

Solid/Stranded Wire: 0.75–2.5 mm²

Enclosure Protection Rating: IP55

Contains Batteries: No

Applications:

For Danfoss

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
