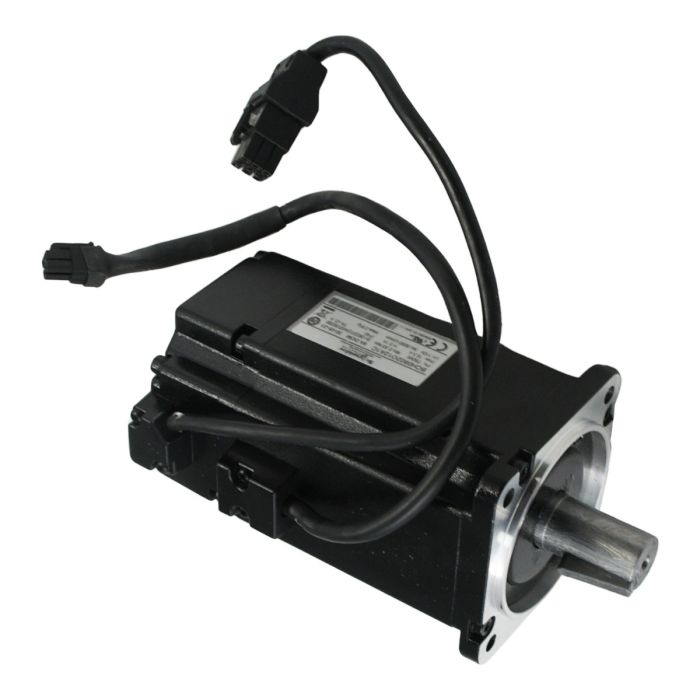

Part Numbers: BCH0802O12A1C

Package Includes:

1x Servo Motor

Specification:

Rated Supply Voltage: 220 V

Phase: Single Phase

Continuous Power: 0.75 kW

Continuous Stall Current: 5.1 A

Maximum Mechanical Speed: 5000 rpm

Torque Constant: 0.47 N·m/A

Back EMF Constant: 17.2 V/krpm (at 20°C)

Mechanical Specifications

Shaft Type: Keyed

Second Shaft: Without

Shaft Diameter: 19 mm

Shaft Length: 37 mm

Key Width: 6 mm

Motor Flange Size: 80 mm

Mounting Type: Asian Standard Flange

Centring Collar Diameter: 70 mm

Centring Collar Depth: 3 mm

Mounting Holes: 4

Mounting Hole Diameter: 6.6 mm

Mounting Circle Diameter: 90 mm

Distance (Shaft Shoulder to Flange): 29.5 mm

Stator Resistance: 0.84 Ω (at 20°C)

Stator Inductance: 7.06 mH (at 20°C)

Electrical Time Constant: 8.37 ms

Rotor Inertia: 1.13 kg·cm²

Maximum Radial Force (Fr): 245 N

Maximum Axial Force (Fa): 98 N

Feedback Type: 20-bit Incremental Encoder

Holding Brake: Without

Cooling Method: Natural Convection

Number of Motor Stacks: 2

Length: 138.3 mm

Protection Rating: IP40

Operating Temperature: 0 to 40°C

Height: 18.6 cm

Width: 14.2 cm

Length: 25.7 cm

Applications:

For Schneider Electric

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
