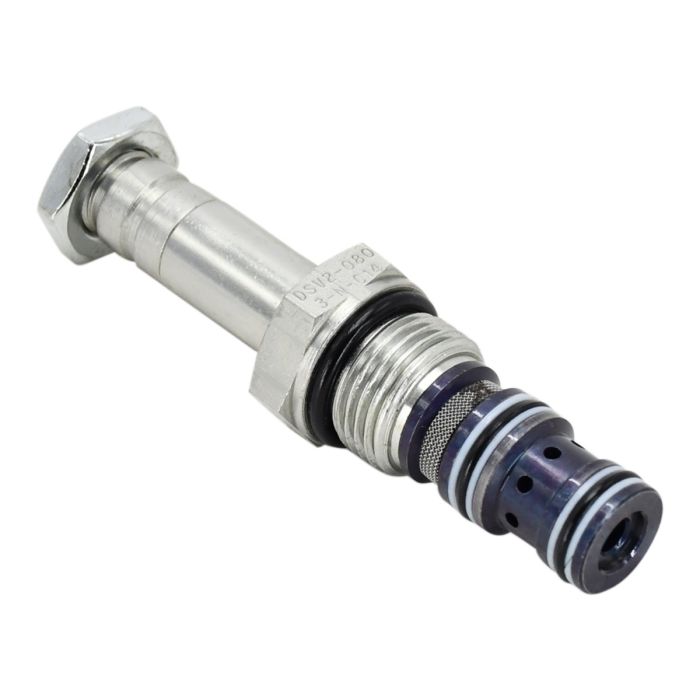

Spool Valve DSV2-080-3-N-C7 for Deltrol

Spool Valve DSV2-080-3-N-C7 for Deltrol

Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Deltrol Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.

In stock

SKU 1964167
loader
Loading...

Part Number: DSV2-080-3-N-C7


Application:

For Deltrol


Specification:

Pressure Max psi: 3000

Pressure Max bar: 207

Flow gpm: 4.0

Flow lpm: 15.1

Cavity: 080-3

Coil: Series 8 K-Coils

Valve Style: Spool

Operating Pressure: 3000 PSI 207 Bar

Internal Leakage: Per land 5 in3/min. 82 cc/min. max. at 3000 PSI

Temperature: -30° F to +250° F -35°C to +120° C

Coil Duty Rating: Continuous from 85% to 110% of rated voltage

Current Draw: 12 VDC is 1.3 amps

Minimum Pull-In Voltage: 85% of rated voltage at 3000 PSI (207 Bar)

Response Time: 80% of final change of state with 100% voltage supplied at 100% of nominal flow rating

Pull-In: 12 VDC 40 m. sec

Drop-Out: 12 VDC 8 m. sec

Recommended Filtration: ISO 17/15/13

In-Line Body Material: Anodized 6061T6 aluminum alloy rated at 3000 PSI (207 Bar)


Package Included: x 1 Spool Valve

It Is a Replacement Part Not Original Part. But It Can Work Good For You
