Part Numbers: SGWS115

Package Includes:

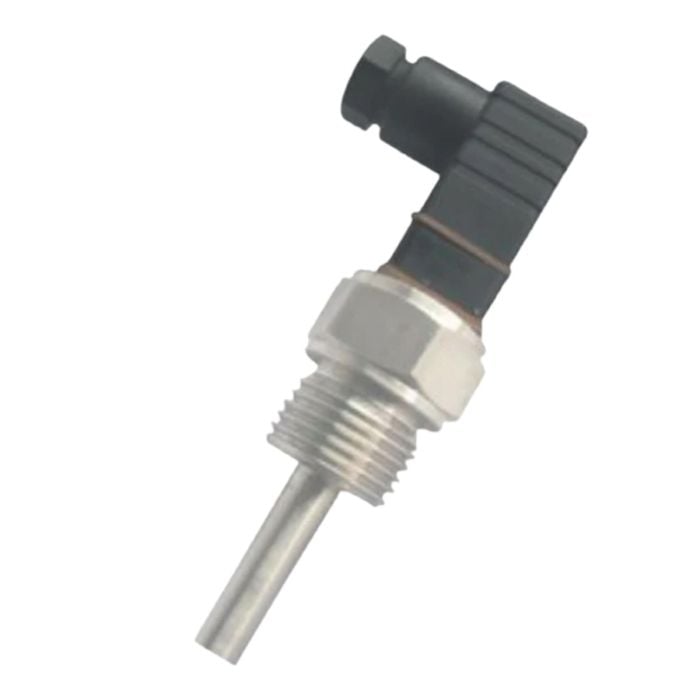

1* PT100 CCS Temperature Sensor

Specs:

Measuring range: -20°C~ +150°C

Output mode: Three-wire system resistance output

Standard: DIN EN 60751(Corresponds to IEC751)

Screw thread: G1/2 standard pipe thread

Autothermal coefficient: 0.4K/mW(when the temperature is 0°C)

Long-term stability: R0 nominal resistance drift ≤0.04%

Anti-vibration level: At least 40g acceleration (10-2000Hz)

Insulation resistance: ＞100MΩ，(when the temperature is 20°C)

Shock resistance level: At least 100g acceleration（after 8.5ms fluctuation）

Response time: Water @0.4m/s t0.5=0.05s t0.9=0.15s Air @2m/s t0.5=3.0s t0.9=10.0s

Test condition: 0.3mA～1mA

Temperature coefficient: TCR＝3850ppm/K

Allowable tolerance: Class A

Measurement accuracy class: Class 0.25

Protection Class: IP65

Shell: Stainless steel 304

Measurement medium: Fluid, such as liquid and gas.

Applications:

For SmartGen

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
